WAVLINK AERIAL HD6 adopts Wi-Fi 6 (802.11ax) technology for faster speeds, greater capacity and reduced network congestion compared to the previous generation. It achieves a total networking speed of about 1775Mbps —1201 Mbps on the 5GHz band and 574 Mbps on the 2.4GHz band. It provides fast wireless signals for scenarios such as outdoor parties, gardens and yard, swimming pool, as well as gives Internet for surveillance cameras.



Features:

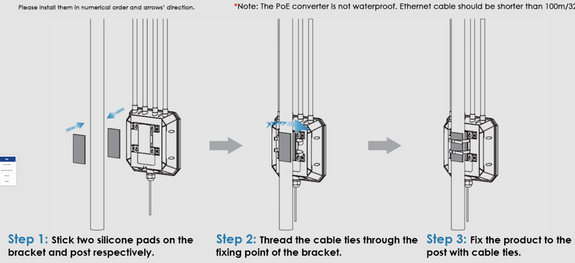

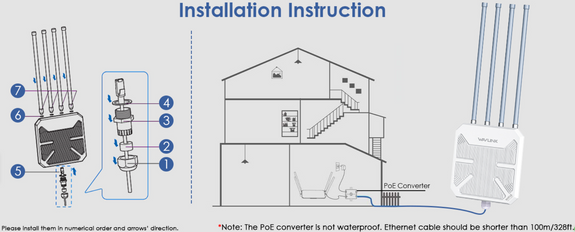

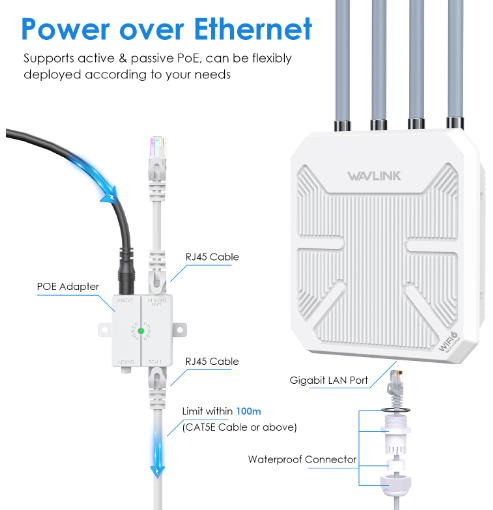

Supports 1024-QAM for much faster wireless connections.Supports MU-MIMO & OFDMA technique to simultaneously communicate with multiple devices in a very effective way. - Multiple PoE Options for Easy Installation: Supports both 802.3af/at active PoE and passive PoE power supply, making installation effortless and flexible.Four 8dBi omni-directional detachable antennas greatly strengthen signals. The glass tube antenna is meant for high precision, corrosion resistance, long life, strong wind resistance.The durable, weatherproof IP67 enclosure protects the access point against harsh outdoor conditions and provides stable wireless coverage up to 200-300m.Sets up in minutes with the WavRouter App or Web UI, easily manage WiFi settings and monitor data usage.Can be easily installed on a wall or a pole with the provided mounting kits.Better Partner with Mesh System: Compatible with Wavlink Everything Mesh WiFi system for seamless roaming and whole-home coverage.

• HARDWARE
• Ethernet Port (RJ45)

  1 x 10/100/1000Mbps WAN/LAN PORT (POE)

• Button

  Reset/Pair Button

• Antenna

  2 x 8dBi 2.4GHz antennas

  2 x 8dBi 5GHz antennas

  Omni Directional Antennas

• LED

  1 x SYS

• Video Outputs

  input:100-240 Va.c. 50/60Hz

  DC 54V/0.3A Power over Ethernet（Passive）

  DC 48V Power over Ethernet（Active)

• SOFTWARE
• Working Modes

  AP; Repeater; Mesh Router; Mesh Extender Modes

• WAN Type

  PPPoE, Dynamic IP, static IP

• Backhaul

  Wireless Backhaul

  Ethernet Backhaul

• DHCP

  Address Reservation

  DHCP Client List

  Server

• Protocols

  IPV4

• Management

  Local management

  Webpage (Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser)

• Network Security

  SPI Firewall

  IP & MAC Binding

  DDoS Attack Prevention

• Cloud Service

  Auto Firmware Upgrade

  OTA Firmware Upgrade

• TX power setting

  support to modify wifi TX power

• Note

  Further software upgrade for feature availability may be required

• TEST DATA
• WiFi Reception Sensitivity

  5GHz:
  11n HT20_MCS0:-94dBm,11ac HT20_MCS7:-75dBm
  11n HT40_MCS0:-92dBm,11ac HT20_MCS7:-72dBm
  11ac VHT20_MCS0: -93dBm, 11ac VHT20_MCS8: -70dBm
  11ac VHT40_MCS0: -90dBm, 11ac VHT40_MCS9:-65dBm
  11ac VHT80_MCS0: -87dBm, 11ac VHT80_MCS9:-62dBm
  11ax HE20_MCS0: -99dBm, 11ax HE20_MCS11:-69dBm
  11ax HE40_MCS0: -97dBm, 11ax HE40_MCS11:-66dBm
  11ax HE80_MCS0: -95dBm, 11ax HE80_MCS11:-63dBm

  2.4G:
  11n HT20_MCS0:-94dBm,11ac HT20_MCS7:-74
  11n HT40_MCS0:-91dBm,11ac HT20_MCS7:-71
  11ax HE20_MCS0: -99dBm, 11ax HE20_MCS11:-68dBm
  11ax HE40_MCS0: -96dBm, 11ax HE40_MCS11:-65dBm

• PHYSICAL
• Material

  ABS Plastic

• Dimension

  240.6x239.9x62.4 mm（Not including antenna）

• Working Environment

  Operation temperature: -20ºC~50ºC

  Storage temperature: -10~70℃

  Operation RH (relative humidity): 10%~90%,noncondensing

  Storage RH: 10%~90%,noncondensing

• In the box

  1x WiFi 6 Outdoor Mesh Router/AP/Repeater

  4 x Omni Antennas

  1x Main Body Holder

  4 X Cable Ties

  1 x Quick Start Guide

  Several Screws




  Optional:

  Passive PoE:

  1x 54V Power Adapter

  1x PoE Converter

  1x Ethernet Cable
