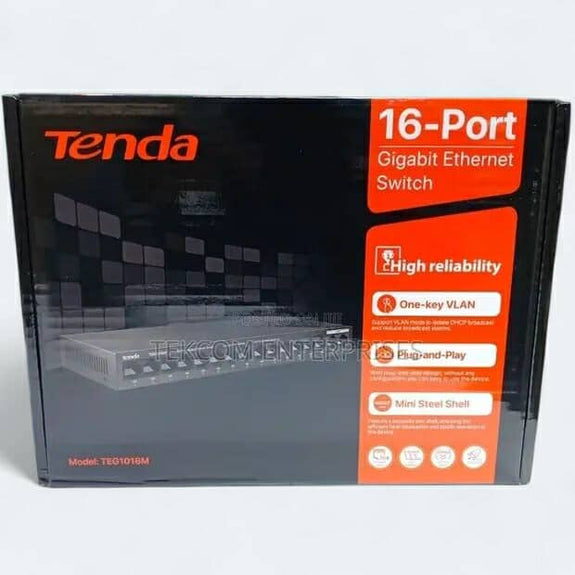

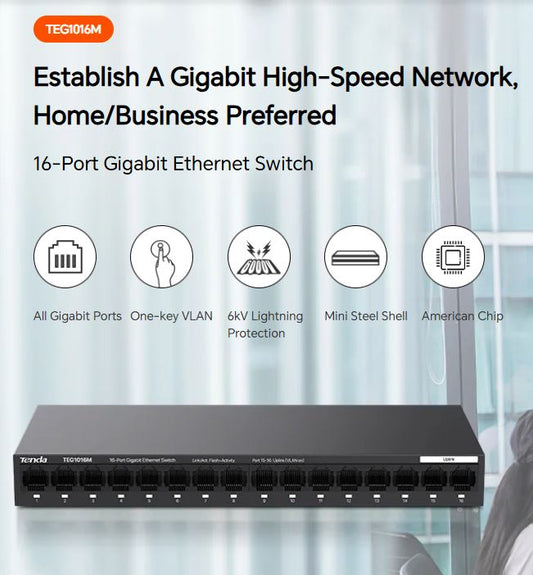

Tenda 16 Port Gigabit Switch - Teg1016m
₱3,300.00
Technical Specifications
| Network standards | IEEE802.3 IEEE802.3u IEEE802.3x IEEE802.3ab |
| LED Indicator | One Link/Act LED indicator for each Gigabit port One Power LED indicator for each device |
| Interfaces | 16*10/100/1000Base-T Ethernet ports |
| Transmission media | Ethernet: CAT3 UTP or better Fast Ethernet: CAT5 UTP or better Gigabit Ethernet: CAT5e UTP or better |
| Dimensions | 235mmx103mmx27mm |
| Material | Metal |

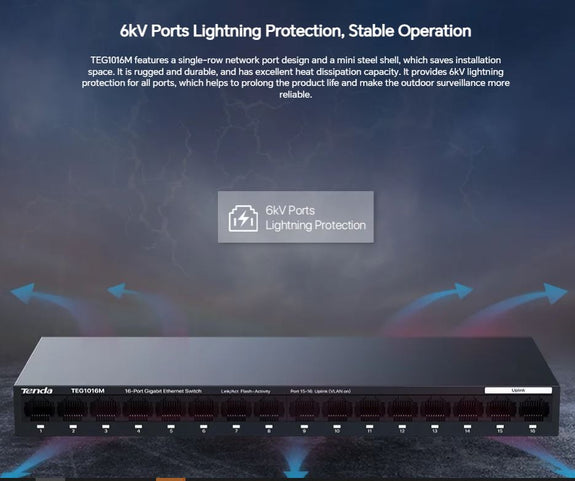

| Level of protection | Lightning protection for port: 6 kV Lightning protection for power: N/A Electrostatic protection: -Air discharge: ±8 kV -Contact discharge: ±6 kV |
| Forwarding mode | Store-and-forward |
| Switch capacity | 32Gbps |
| Forwarding rate | 23.8Mpps |
| Buffer | 2Mb |
| MAC address table | 8K |
| Power method | Input: 100 - 240V AC 50/60Hz, 0.4A Output: 12V 1A |
| Power consumption | Max: <12 W |

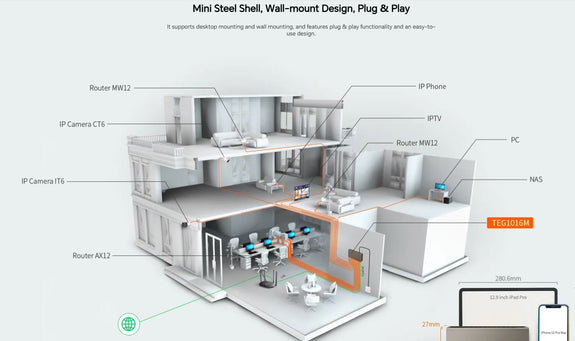

| Mounting | Desktop mounting: support Wall mounting: support Rack mounting:non-support |
| Environment | Operating temperature: 0°C - 45? Storage temperature: -40°C - 70°C Operating humidity: (10% - 90%) RH, non-condensing Storage humidity: (5% - 90%) RH, non-condensing |
| Certifications | CE, FCC, RoHS |
| Funtions | One-key VLAN (In this mode, ports 1 to 14 cannot communicate with each other, but can communicate with ports 15 to 16.) |
| Jumbo frame | 10K |
| Protocols | CDMA/CD |
| MAC address learning | Auto-learning and Auto-Updating |
