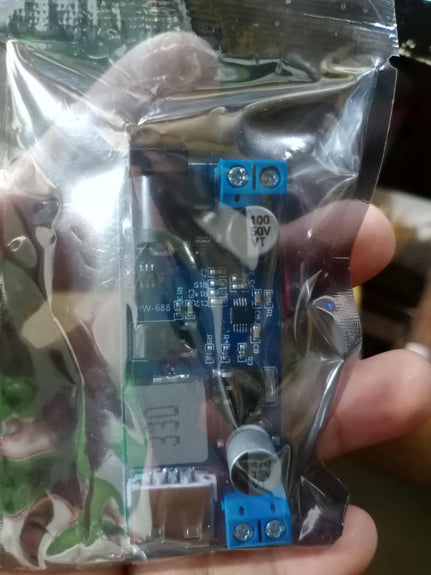

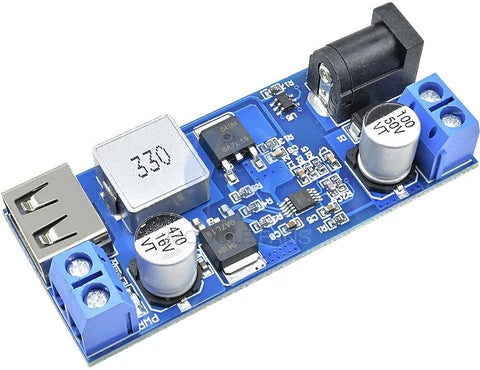

6-24V to 5V 3A USB DC-DC Buck Step-Down Converter

₱120.00

Quantity

Hurry! Only left in stock!

Real time Visitors right now

Product details of 6-24V to 5V 3A USB DC-DC Buck Step-Down Converter

  • Module Properties: non-isolated buck module (BUCK) synchronous rectification
  • Input voltage: DC 6-24V
  • Output voltage: 5.1-5.2V
  • Output current: 3A MAX (please enhance heat dissipation when full load using), the actual test result input 12V output current 2A do not need to enhance heat dissipation.
  • Conversion efficiency: can up to 97.5% (6.5V step down to 5V 0.7A) (after short reverse protection and fuses test value)
  • Switch frequency: 500KHz
  • Output ripple: 10mV around (12V to 5V3A) 20M bandwidth
  • Output indicator: Output voltage indicator is red
  • Operating temperature: Industrial grade (-40 degree to + 85 degrees) (the higher the ambient temperature, the lower the output power)
  • Output overvoltage protection: Yes, input 1.5A fuse, output 5V have 300W TVS tube clamp protection.
  • Full load temperature: 30 degree
  • Static current: 0.85 mA
  • Load regulation: ± 1%
  • Voltage Regulation: ± 0.5%
  • Dynamic response speed: 5% 200uS
  • Output short circuit protection: Yes, but please do not short circuit for a long time
  • Input reverse polarity protection: Yes, there is reverse polarity protection diode
  • Connection mode: Welding
  • Input mode: Welding
  • Output mode: USB
